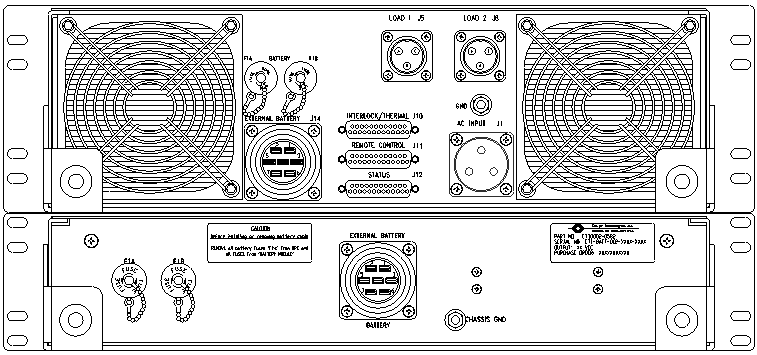

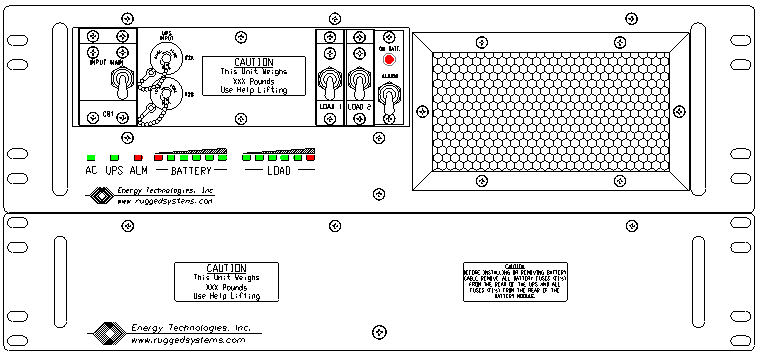

Part Number: ETI0001-2214
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| AC OUTPUT | |
| Output voltage: | 120 VAC true sinewave standard, others optional |
| Output rating: UPS | 3000 VA standard in 3U
electronics chassis 0.65 to 0.75 pf standard, optional configurations to 24,000 VA |
| Non-linear load capacity: | Up to 100% non-linear load capability w/o derating |
| Output voltage regulation: UPS | ± 3.0% static regulation of nominal ± 3.0% dynamic (0 to 50% load step) |
| Overload surge capacity: | 110% for 10 minutes; 125% for 30 seconds |
| Harmonic distortion: | Less than 5.0% into 100% non-linear load |
| Output frequency: UPS | 60 or 50 Hz ± 2.5% synchronized to utility 60 or 50 Hz ± 1.0% w/ utility not available 400 or 1000 Hz output available as an option |
| Operational status | Status, load and battery level LEDs,
w/contacts Adjustable level,+90 dB audible alarm w/on/off |
| AC INPUT | |
| Input voltage selection: | Nominal 115 VAC, optional autoranging input of 85-270 VAC |
| Input voltage tolerance: UPS | 85-135 VAC @ full load without using battery, to 70 VAC @ 75% load |
| Input frequency: | From 46 Hz to 70 Hz standard, optional to 440 Hz |
| Input power factor: | Better than 99% typically |
| Input/output isolation: | 3000 VA, up to 120 dB common mode, <1.0 mA leakage |
| Input transient suppression: | Complies with IEEE 587 and UL 1449 |
| Input control/protection: | Guarded 2 pole input breaker w/ UPS fuses |
| Input power connection: | MS3102-22-2P threaded locking |
| EXTERNAL BATTERY | |
| Battery type: | Maintenance free immobilized electrolyte, Flame retardant materials, Oxygen Index 28+ |
| Battery life: | Rated for continuous service life of 5 years |
| DC protection: | Panel mounted fuses standard, breaker optional |
| Battery expansion: | Up to 24 hours w/ Battery Expansion Modules |
| DISTRIBUTION PANEL | |
| Output circuits: | Two (2) controlled outputs via front panel circuit breakers |
| Output control: | Local/remote control panel w/rocker switches Thermal and remote interlock ON/OFF control |
| Output receptacles: | MS3400D16-10S threaded locking, various options |
| MECHANICAL | |
| Dimensions ( H x D x W ): UPS 2U Battery Module |
5.25 (3U) x 23.5 x 19.0 in (133
x 597 x 483 mm) 3.50 (2U) x 23.5 x 19.0 in (89 x 597 x 483 mm) |
| Rack Slide Mount Patterns: | Jonathan, General Devices patterns standard, others optional |
| Alternate Mounting Options: | Table, Wall, Floor, Portable, Horizontal/Vertical |
| Shipping weight: UPS 2U Battery Module |
95 lb. ( 43 kg) with lift handles
front and rear 102 lb. ( 72 kg) with lift handles front and rear |
| Audible noise: | Less than 47 dB @ 5.0 ft., ANSI "A" scale |
| Cooling type: | High capacity, negative pressure, forced air |
| Cooling air direction: | Rear intake, exhaust to sides, others optional |
| Air intake filter: | Washable metal filter media, others optional |
| ENVIRONMENTAL | |
| Storage temperature: | -40° to 158° F ambient (-40° to 70° C) with fully charged batteries |
| Operating temperature: | 32° to 113° F ambient (0° to 45° C ), lower/ higher optional |
| Operating humidity: | 0 to 95% relative humidity (non-condensing) |
| Storage elevation: | Up to 40,000 ft (12,192 m) |
| Operating elevation: | Up to 15,000 ft (4,572 m), higher optional |
| STANDARDS | |
| United States: | Meets UL-1778 standard for UPS equipment, MIL STDs 167-1, 454, 810, 901D Grade A, 1399-300A & 2000 |
| Canada: | CSA C22.2 No. 107 UPS safety requirements |
| EMI Protection: | EMI/RFI FCC Part 15, Class A; EN55022; MIL STD 461 |
| OPTIONAL ACCESSORIES | |
| Autoranging International Input, Cold Start, Alternate I/O Configurations, Battery Expansion, Batteryless Operation, Battery Charger/Conditioner, Power Distribution Units, Software Interface, Asynchronous serial COM port, 10BaseT Ethernet SNMP/HTTP port, Transport Cases, Slides and Mounting Kits | |
